Mach3 screensets, macros, etc.......

I've used the Mach3 CNC control software by Artsoft for many years, and have a fair bit of experience in creating custom screensets. Many users find that the stock Mach3 screens are poorly designed, and typically contain a lot of controls that the average user does not use

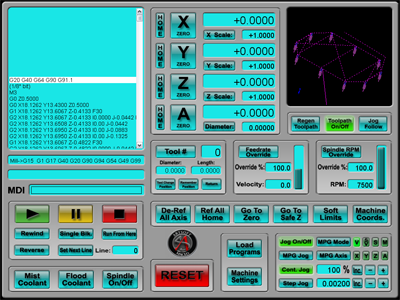

Aqua Screenset

A free, simplified Mach3 screenset.

(click for larger image)

Download Aqua Screenset

Download Aqua Photoshop files

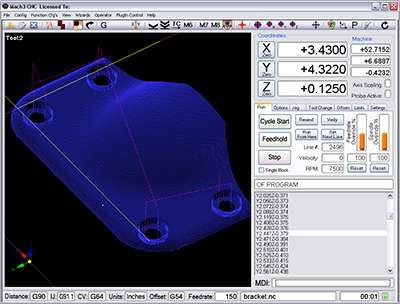

2010 Screenset

A simplified Mach3 screenset to make Mach3 look and feel like a "Windows" program, with added features to make your CNC experience much more enjoyable. Additional features include:

• Simple Z axis Auto Zero - no need to scour the internet to find an auto zero macro, and spend hours getting it to work with your machine. The 2010 screenset has a Z axis auto zero macro that's ready to run.

• Automatically zero tools after a tool change.

• Probing Wizard with multiple probing operations

• Many more.....


(Click Image to go to 2010 Screenset Web Page)


Mach3 Customization Wiki

All the info in the Mach3 customization Wiki appears to have been lost when the Artsoft forum was updated.

This zip file contains most of the info relevant to screen editing.
